MSO Series LA with Digital Oscilloscope

- 2 in 1 (DSO + LA)
- 8 inch color LCD
- USB data transmission supported
- 20 groups automatic measurement options

Digital Storage Oscilloscope
- Bandwidth: 60MHz - 200MHz
- Sample rate: up to 2GS/s
- Auto-scale function
- FFT

Logic Analyzer
- Bandwidth: 100MHz - 200MHz
- Sample rate: 20S/s - 2GS/s
- 16 digital channels

Send Inquiry
Support
Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON mso series la with digital oscilloscope, logic analyzer oscilloscope, logic analyzer, 16 channel oscilloscope with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.


1. Oscilloscope & 16-channel logical analyzer, support multiple trigger mode including bus, status, data alignment, data width, distributed queue and etc.









Video
  • MSO Battery Installation Guide

Specifications

Model MSO7062TD MSO7102TD MSO8102T MSO8202T
Bandwidth 60MHz 100MHz 200MHz
SampleRate (realtime) 1GS/s 2GS/s
Display 8.0'' color LCD ,640 × 480 pixels
Channel dual + external trigger
Horizontal Scale (s/div) 2ns/div~100s/div, step by 1~2~5 1ns/div~100s/div,
step by 1~2~5
Vertical Sensitivity 2mV/div - 10V/div
Vertical Resolution (A/D) 8bits (2 channels simultaneously)
 Trigger Mode  Edge, Video, Alternate, Pulse, and Slope
Acquisition Mode Normal,Peak Detect,and Average
Record Length 2M points
Waveform Storage 4 waveforms
Waveform Math +, -, ×, ÷,  FFT
 Battery  7.4V 8000mAh (optional)
 Dimensions (W × H × D)  370 × 180 × 120 (mm)
 Weight (without package)  2.20 kg
Logic Analyzer Performance Specifications
Model MSO7062TD MSO7102TD MSO8102T MSO8202T
Sample Rate (real time) 20S/s - 2GS/s
Bandwidth 100MHz 200MHz
Channel 16
Record Length 4M points

Accessories

The accessories subject to final delivery.

  • Power Cord
  • CD Rom
  • Quick Guide
  • USB Cable
  • Probe
  • Probe Adjust
  • Soft Bag (optional)

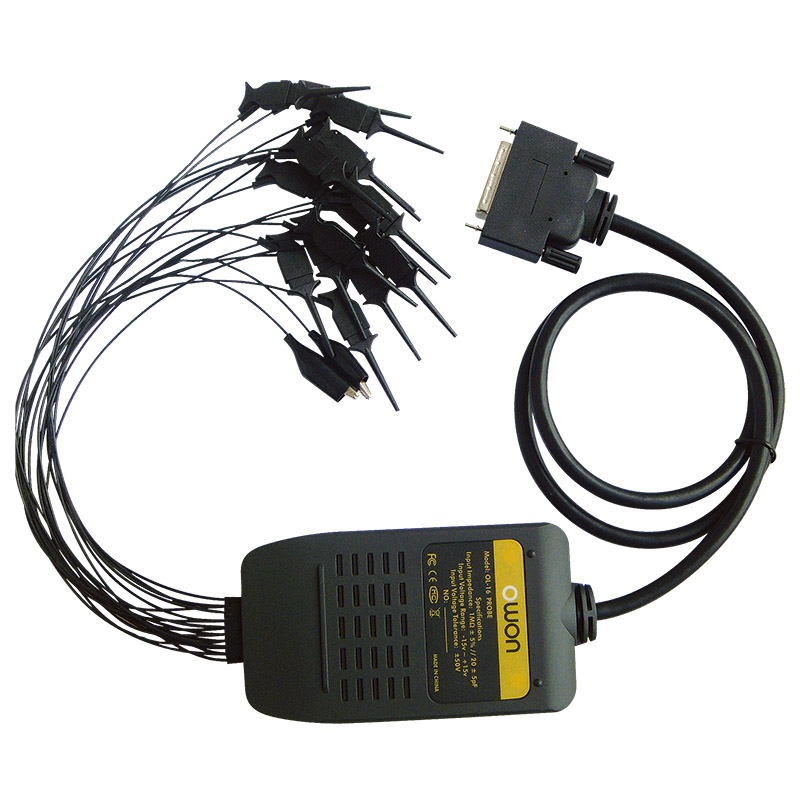

  • Logic Analyzer Module
