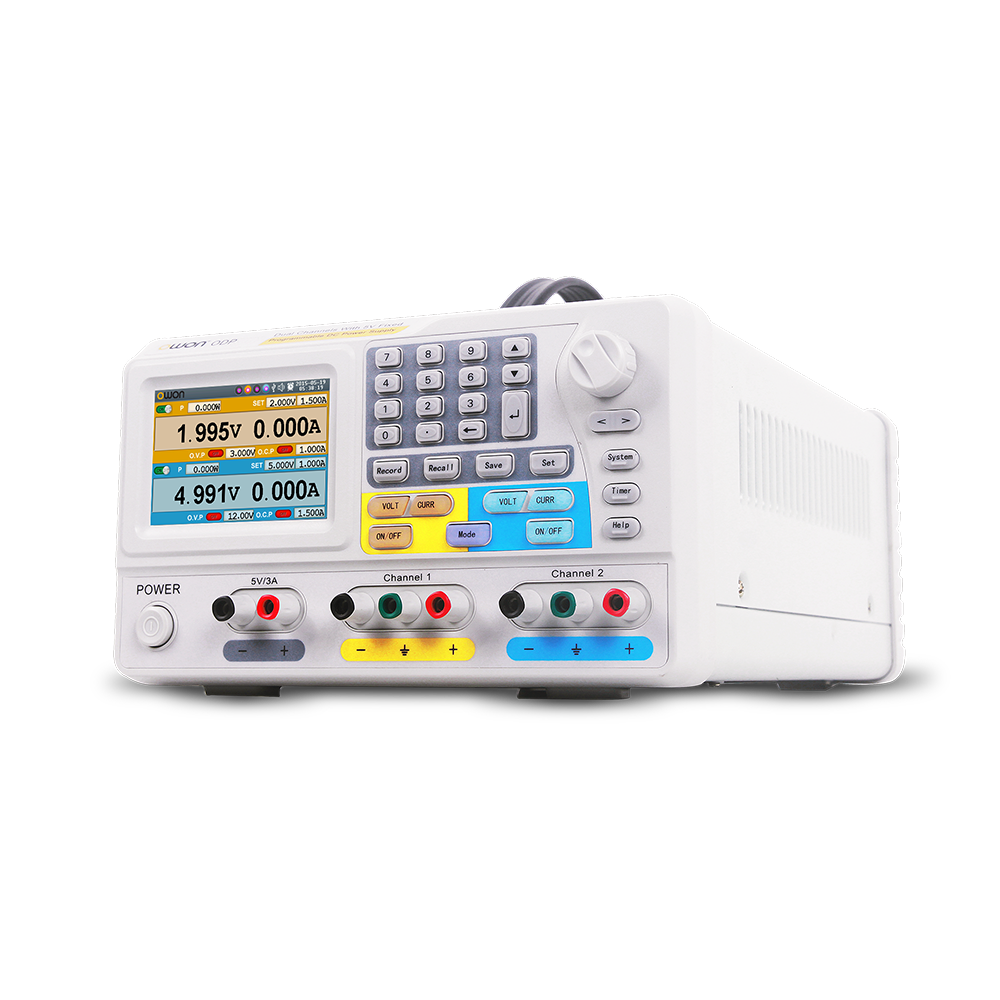

OWON 2-CH Output With 5V Fixed Programmable DC Power Supply

- ODP3032 : two independent controllable channels
- Output resolution : 1mV / 1mA
- Low ripples / low noise : <300 μVrms / 2 mVpp
- Up to 100 group timers
- Up to 10 group preset system configurations
- Over-voltage / Over-current protection
- Auto-cooling system
- 3.9 inch high resolution (480 × 320 pixels) TFT LCD display
- Multiple communication interface : USB, and RS232

Send Inquiry
Support
Video
  • ODP Disassemble Guide

  • ODP Brief Introduction

Specifications

The specifications based upon the instrument having run for at least 30 minutes continuously, under the specified operating environment
Model ODP3032
Output Power 195W
Channel 2 (independent) Fixed 5V
DC Output Rating Voltage 0- 30V (Independent / Parallel)
0 - 60V (Series)
-30V - 30V (Plus-minus)
5V
Current 0 - 3A (Independent / Series / Plus-minus),
0 - 6A (Parallel)
3A
Line Regulation CV ≤0.01%+3mV ≤3mV
CC ≤0.1%+3mA /
Load Regulation CV ≤0.01%+3mV ≤0.1% + 3mV
CC ≤0.2%+3mA /
Noise and Ripple
(20Hz~7MHz)
CV ≤300μVrms/2mVpp
CC ≤3mArms /
Settings Resolution Voltage 1mV /
Current 1mA /
Settings Accuracy
(25℃±5℃)
Voltage ≤0.05%+3mV /
Current ≤0.1%+3mA /
Read Back Resolution Voltage 1mV (<10V), 10mV (≥10V) /
Current 1mA /
Read Back
Accuracy
(25℃±5℃)
Voltage ≤0.05%+3 digit /
Current ≤0.1%+3 digit /
Communication Interface USB Host, USB Device and RS232
Display
 Display Type 3.9 inch colored LCD
 Display Resolution 480 × 320 pixels
 Display Color 65536 colors
Mechanical Specifications
 Dimension (W×H×D)  250 × 158 × 358 (mm)
 Device Weight   10.50 kg

Accessories

The accessories subject to final delivery.

  • Power Cord
  • CD Rom
  • Quick Guide
  • USB Cable
  • Fuse
