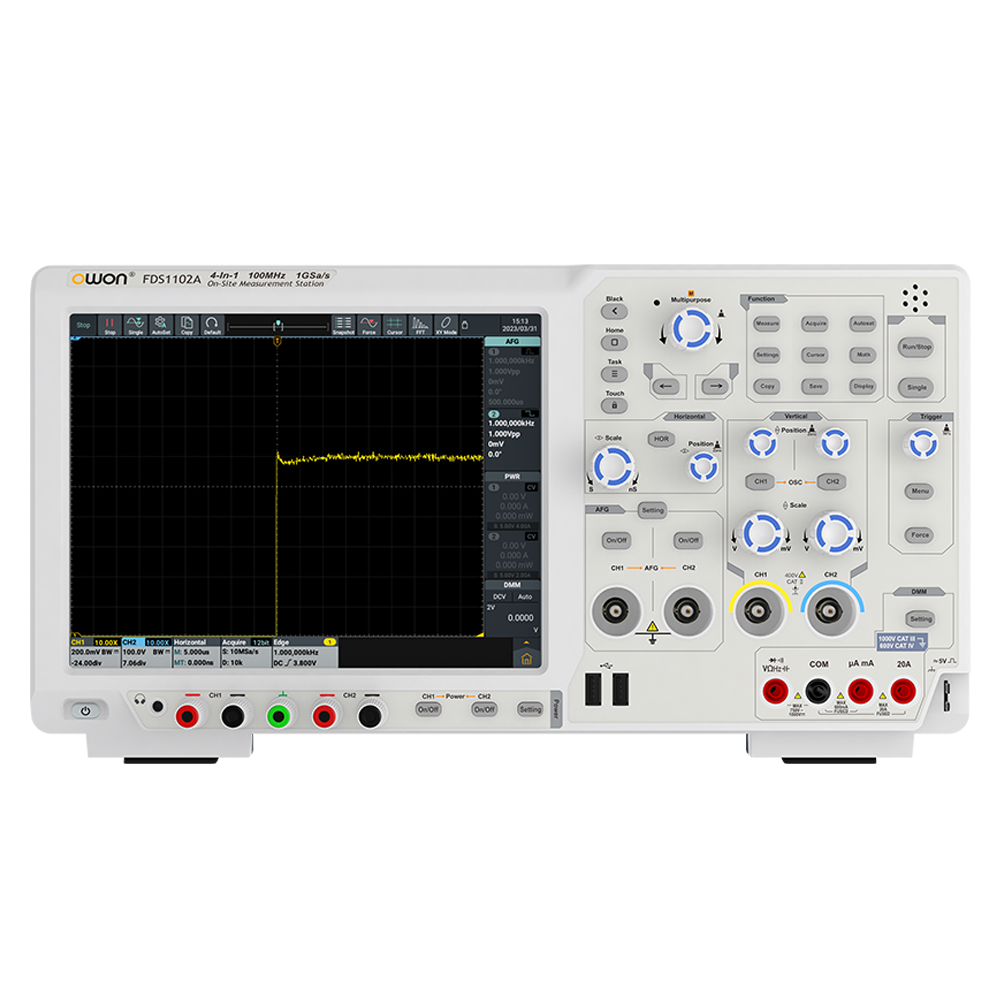

OWON FDS Series Multifunction DSO

DSO+AG+Power supply + Multi-meter 4-in-1

Supports edge trigger, slope, pulse width, window, under amplitude, interval, timeout, code type, Nth edge, video trigger, serial bus trigger etc.

Supports FRA chart testing

Android based, new experience, more possible

Supports external HDMI display, mouse and keyboard, facilitating complex editing operations

Supports configuring multi-media equipment, such as camera, microphone, speaker and headphone jack, expand more teaching methods

Rich interface: USB host x4, USB device, LAN, HDMI

10.4 inch capacitive touch HD display

Send Inquiry

Support

Product Details

Specifications

Oscilloscope Specifications

Modle		FDS1102A	FDS1102	FDS3102	FDS3202	FDS3302
Bandwidth		100MHz	100MHz	100MHz	200MHz	300MHz
Sample Rate		1GS/s	1GS/s	2.5GS/s	2.5GS/s	2.5GS/s
		14bits	8 bits	8 bits	8 bits	8 bits
Channel		2
Input impedance		1MΩ ± 2%, in parallel with 15pF ± 5pF
Input coupling		DC, AC, and GND
Record length		10M
Horizontal Scale (s/div)		2ns/div - 1000s/div, step by1 - 2 - 5		500ps/div - 1000s/div, step by1 - 2 - 5
Max Input Voltage		1MΩ ≤ 300Vrms;
Vertical Sensitivity		1mV/div - 10V/div (at input)
Cursor Measurement		△V, and △T between cursors, △V and △T between cursors, and auto- cursors
Automatic Measurement		Period, Frequency, +Pulse Width, -Pulse Width, Rise Time, Fall Time, Screen Duty, +Duty Cycle, -Duty Cycle, PK-PK, RMS, Overshoot, Max, Min, Top, Cycle RMS, Base, Amplitude, Preshoot, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge Count, Area、Cycle Area, Delay A→B, Delay A→B, Phase, FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF
Waveform Math		＋, －, ×, ÷, FFT, User Defined Function, digital filter
Waveform Storage		128MB,100 waveforms
Lissajou's Figure	Bandwidth	full bandwidth
Lissajou's Figure	Phase Difference	±3 degrees
Trigger Type		Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I²C, SPI, RS232, LIN and CAN
Line / Field Frequency (video)		NTSC, PAL and SECAM standard
Trigger Mode		Auto, Normal, and Single
Interface		HDMI；USB device 1, USB Host 4 ；Trig Out(P/F)；LAN；earphone
Frequency Counter		available
WIFI （Optional）		available
Display		10.4 inch（1024×768）touch LCD

Power Specifications

Multimeter Specification

Full Scale Reading	4½ digits	Frequency Response	(40 - 1000) Hz
Auto Range	√	Ture rms	√
Measure	oltage, Current, Capacitance, Resistance, Frequency, Duty cycle, Continue，Diode test

Waveform Generator Specification

Max Frequency Output	50MHz
Sample Rate	300MS/s
Channel	2
Amplitude (HR)	2mVpp - 10Vpp
Waveform Length	8K
Standard Waveforms	Sine wave, square wave, ramp wave, pulse wave, noise
Arbitrary Waveforms	exponential rise, exponential decline, Sin(x)/x, step wave etc 28 build-in waveforms
Modulate type	AM, FM,PM，FSK,SWEEP,BURST

Accessories

The accessories subject to final delivery.
