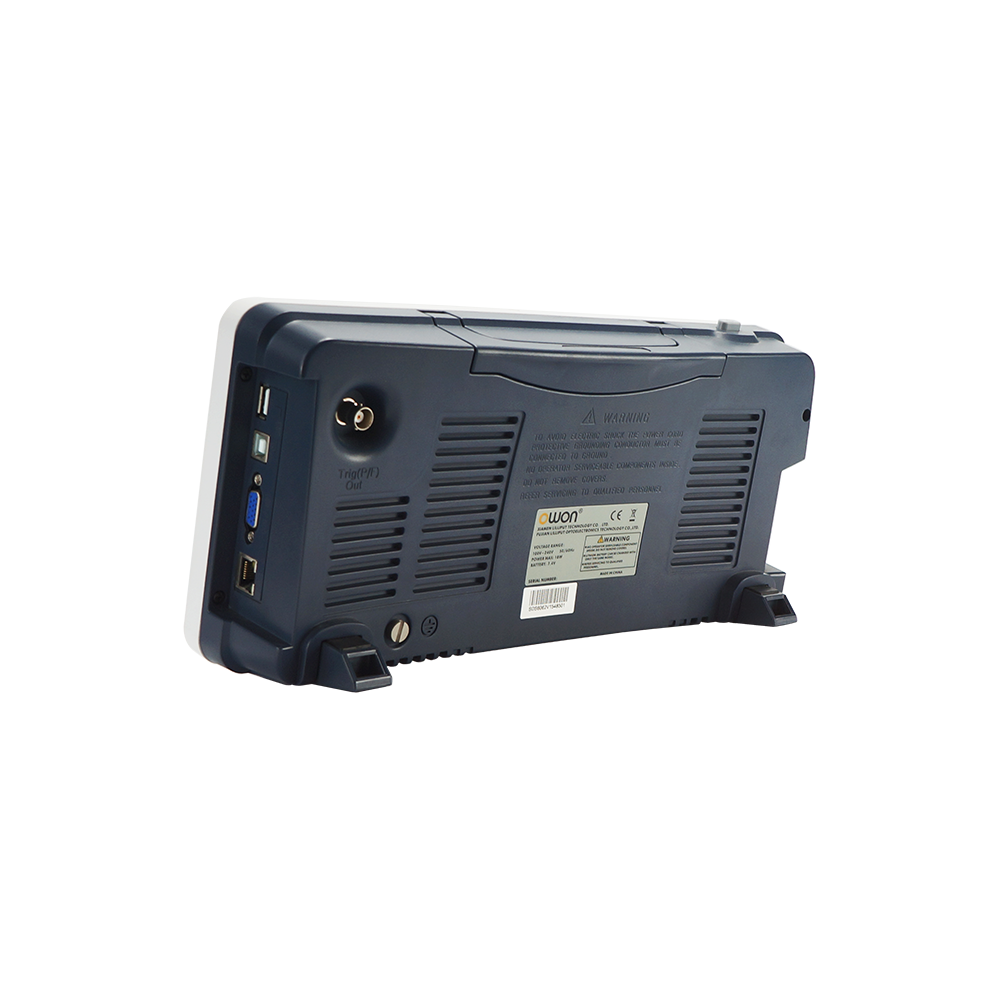

OWON SmartDS Series Digital Oscilloscope

- Bandwidth : 100MHz - 300MHz
- Sample rate : 1GS/s - 3.2GS/s
- 10M record length for each channel
- Multi-function : auto-scale, Pass / Fail, and current-measuring
- LAN remote control
- Supported SCPI and labVIEW
- Smart design with easy portability
- Large 8 inch 800 x 600 pixels display
- Optional battery available

Send Inquiry
Support
Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON smartds series digital oscilloscope, battery oscilloscope, 300 mhz oscilloscope with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.


1. 10M Record length

SDS series employ 10Mpts record length, waveform detail is easy to track. Keep the maximum sample rate at longer period, capture every waveform change.









2. Auto-scale function

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.













3. Waveform Record/Play

SDS series waveform record/play function support 2-channel waveform record.Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replay to analyzer the detail.







4. SVGA Function

SDS oscilloscope provide 800 x 600 SVGA port. Oscilloscope content can display on external monitor or projector in this way. It helps with production line monitoring, meeting discuss and course display.













5. Battery Function

Optional large volume battery, supports floating measurement. Convenient to carry.



Video
  • SDS Battery Installation Guide

  • SDS Pass/Fail mode

  • SDS Brief Introduction

Specifications

Model SDS7102 SDS8102 SDS7202 SDS8202 SDS8302 SDS9302
 Bandwidth 100MHz 200MHz 300MHz
 Sample Rate 1GS/s 2GS/s 1GS/s 2GS/s 2.5GS/s 3.2GS/s
 Horizontal Scale (s/div)  2ns/div~100s/div,
step by 1~2~5
 1ns/div~100s/div, step by 1~2~5
 Display  8”color LCD, 800 x 600 pixels
 Channel  2 + 1 (external)
 Record Length  10M
 Vertical Resolution (A/D)  8 bits (2 channels simultaneously)
 Vertical Sensitivity  2mV/div~10V/div
 Trigger Type  Edge, Pulse, Video, Slope, and Alternate
 Communication Interface  USB host, USB device, Pass / Fail, LAN, VGA (optional), or RS232 (optional)
 Battery (optional)  7.4V, 8000mA
 Dimension (W × H × D)  340 × 155 × 70 (mm)
 Weight (without package)  1.80 kg
